WPAS10 Dual sensor bed occupancy detection pressure pad

✓ New technology bed sensor reduces false alarms using bed edge detection sensor
✓ An alarm is only generated when a person rises from the edge of the bed
✓ Integral discrete radio alarm transmitter signals caregiver pager for bed exit alert
✓ Ready to use straight out of the box factory set up and tested

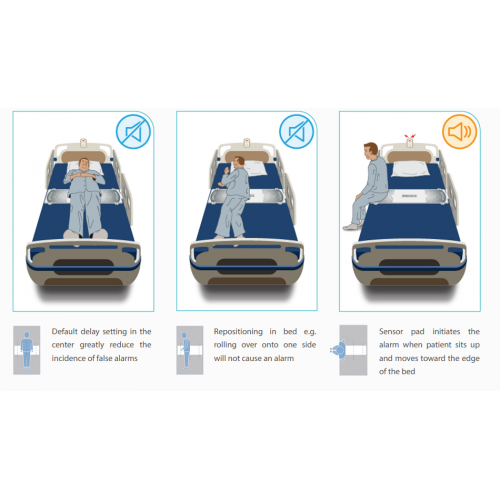

The WPAS10 is a new technology bed sensor designed to reduce falls and false positives for bed monitoring applications. A central sensor detects when a patient lays on the bed. If they roll to the side of the bed the alarm is delayed. If they sit on the edge of the bed, or fall out of bed, an alarm signal is generated instantly. The advantage with this new design is the ability to send an alarm transmission before the person actually stands away from the bed. Note: This code is for sensor only. See alarm receivers below.

Compatible Alarm Receivers

TUMPAG31
PAG-11c
CMD-11

Items included: 1 x WPAS10 sensor pad with integral transmitter and battery, 1 x user guide. Note: this code is sensor only. Bed sensors are non-returnable consumables.

Key Features

• Patented multi-zone detection design
• Alarm transmission when a patient is sitting on the edge of the bed
• Default delay setting in the center greatly reduces the incidence of false alarms
• Automatic reset when pressure is re-applied to the sensor pad
• Options for single side or both sides sensing
• Easy to clean & incontinence resistant
• Integral alarm transmitter for wireless alert notifications
• Suitable for homer carer one-to-one support
• Suitable for multiple bed monitoring systems for Care Homes & Hospitals
• Discrete under-mattress patient body weight detection (subject to bed type)

Technical Features WPAS-10 Bed Sensor
Early Alert Sensor Pad
Dimensions 30 x 10 (76 x 25cm)
Integral transmitter frequency 433MHz
Programmable radio address coding
Low battery detection
Supplied with mattress securing clips
Dual sensor: Central delayed alarm with bed edge instant alarm
