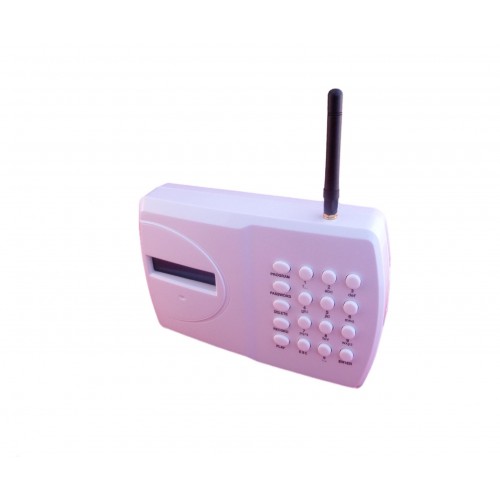

GSM Mobile network telephone auto dialler with 6 x wired trigger inputs AD-06

✓ The AD06 GSM Speech and Text Auto Dialler provides a complete solution to all your GSM notification needs.
✓ 6 Inputs allows connections to Alarm Control Panels, Nurse Call Devices, Flood Sensors Environmental Monitoring Systems and all other multi-channel Warning Systems.
✓ 4 Outputs can be controlled locally by the GSM Diallers keypad or else remotely by a free iOS or Android app

This GSM device is supplied with a pre-installed mobile SIM card. The SIM has a £1.00 credit, enough to set up and test this product. There are no further monitoring or subscription payments to make. See 1Pmobile 1P Mobile SIM Card Deals for further details. A £10.00 top-up typically provides 4-Month’s functionality of the product. AD-06 is a high specification GSM security dialler with 6 configurable trigger inputs. By adding a radio receiver wireless links can be established with various types of radio transmitters, including the Medpage long range products.

Some applications may include wireless connection to outdoor photoelectric beams for use on farms, leisure complexes, commercial properties to detect potential theft, vandalism etc.

Use for monitoring mechanical operations, machinery failure,connect to existing security systems to establish off-site alerts.

Key Features

• 2G and 3G versions available
• Diallers LCD display showing text in any of 8 different languages
• All options programmable by Dialler keypad. Key options programmable by individual Text or via a free Android or iOS App
• 6 Trigger Inputs
• 4 Outputs
• 9 programmable phone numbers for each trigger
• Different 10 sec recordable message or 32 digit SMS sent for each trigger
• Select whether a Voice Message, an SMS, or both Voice Message and SMS are sent to each of the phone numbers and whether all or just some phone numbers are contacted on each of the 6 triggers
• Built in memory for telephone numbers and programmed settings
• Inputs can be programmed as instant or double knock
• Programmable dial-out delay on trigger activation
• Dialler Outputs can be programmed as User activated only or User activated plus Trigger/Event activated
• Dialler Outputs can be programmed as either toggle latching or momentary
• Users can activate Dialler outputs remotely via Dial in, Text, Android or IOS App or locally via Dialler Keypad
• Built in Siren
• Built in Microphone plus terminals for remote Microphone
• 4 Digit programmable password for programming and dial-in
• Built-in Listen-in. Open up either after voice message received or by dial in
• Dialler Programmable as Silent Alarm (dial only) or Audible (siren + dial)
• Cancel Dialler Message and Alarm at remote telephone using * Key or cancel Message only using # Key
• Programmable daily/weekly/monthly test message (Voice or SMS) + Dial in to initiate instant test message
• GSM Network Provider Field Strength Indication (via Dialler Display or SMS from Dialler)
• Dialler Trigger input runaway prevention Ability to limit number of dial-outs or SMSs to 50 in any 24 hour period
• Pay as you go SIM low credit indication via all incoming SMSs being automatically forwarded
• Tamper Switch
• Battery back-up either from the Panel to which Dialler is connected or optional 9V PP3 battery
• External Power Fail SMS sent (provided PP3 battery installed)
• Dialler can send SMSs giving its essential programming details
• Turn on/off Dialler via Keypad or dial-in plus password
• Built in Memory giving last 50 Events, time and date stamped
